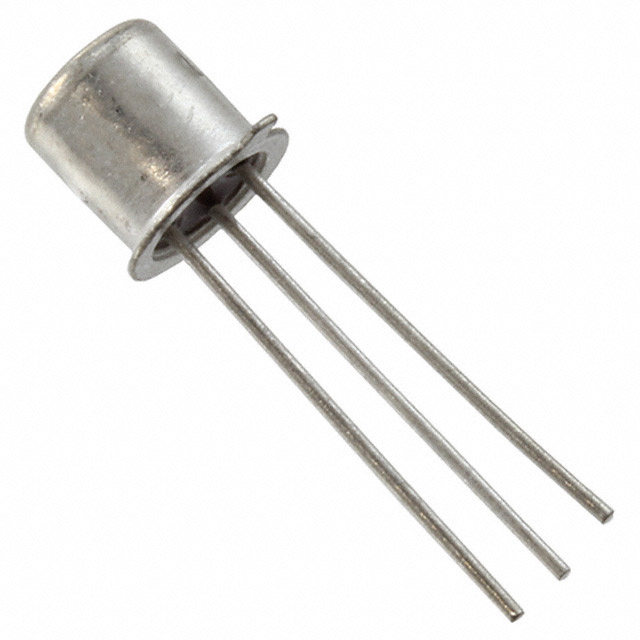

BC109 TRANSISTOR BJT NPN TO18

Type Designator: BC109

Material of Transistor: Si

Polarity: NPN

Absolute Maximum Ratings
Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 175 °C

Electrical Characteristics
Transition Frequency (ft): 150 MHz

Collector Capacitance (Cc): 5 pF

Forward Current Transfer Ratio (hFE), MIN: 180

Noise Figure, dB: -

Package: TO18
