VBRDSS (V)
-100
| | RDS(on) Max 10V (mOhms) | 60.0
|
| Base Part Status | Obsolete
|
| Circuit | Discrete
|
| ID @ TC = 100C (A) | -29
|
| ID @ TC = 25C (A) | -40
|

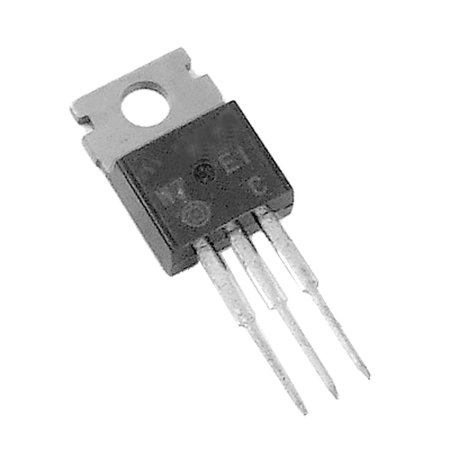

| Package | TO-220AB
|
| Power Dissipation @ TC = 25C (W) | 200
|
| Qg Typ (nC) | 120.0
|
| Qgd Typ (nC) | 64.7
|
| Qual Level | Industrial
|
| Rth(JC) (K/W) | 0.75
|
| VGs Max (V) | 20
|
| Package Class | Thru-Hole |
| RoHS | No |
| Halogen-Free | No |
| Technology | Planar Mosfet |
