Type Designator: IRL530
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pd ? - Maximum Power Dissipation: 88 W
|Vds|? - Maximum Drain-Source Voltage: 100 V
|Vgs|? - Maximum Gate-Source Voltage: 10 V
|Vgs(th)|? - Maximum Gate-Threshold Voltage: 2 V
|Id| ? - Maximum Drain Current: 15 A
Tj ? - Maximum Junction Temperature: 175 °C
Qg ? - Total Gate Charge: 28(max) nC
tr ? - Rise Time: 100 nS
Coss? - Output Capacitance: 250 pF
Rds ? - Maximum Drain-Source On-State Resistance: 0.16 Ohm

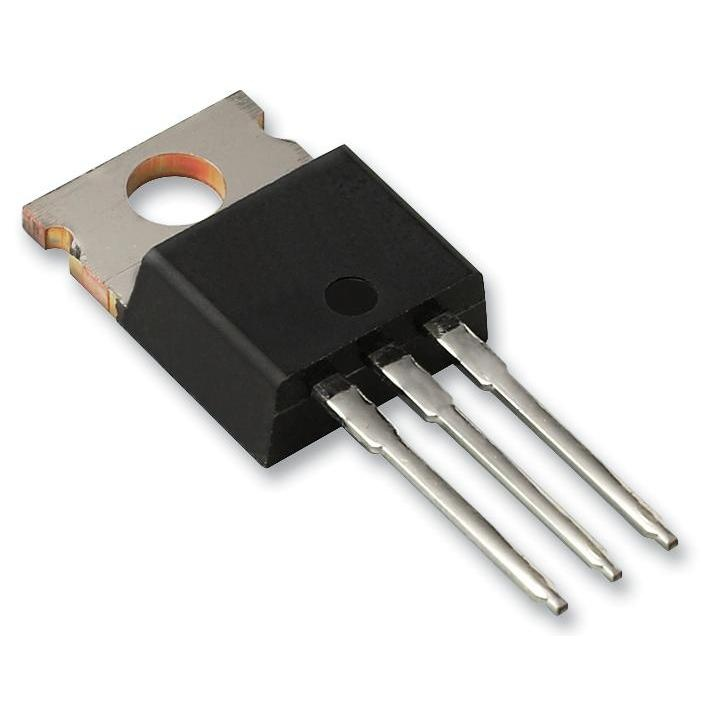

Package: TO220
