Type Designator: 2SK3069
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Absolute Maximum Ratings
Pd ? - Maximum Power Dissipation: 100 W
|Vds|? - Maximum Drain-Source Voltage: 60 V
|Vgs|? - Maximum Gate-Source Voltage: 20 V
|Id| ? - Maximum Drain Current: 75 A
Tj ? - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|Vgs(off)|? - Minimum Gate-to-Source Cutoff Voltage: 1 V
Qg ? - Total Gate Charge: 125 nC
tr ? - Rise Time: 300 nS
Coss? - Output Capacitance: 1000 pF
Rds ? - Maximum Drain-Source On-State Resistance: 0.0075 Ohm

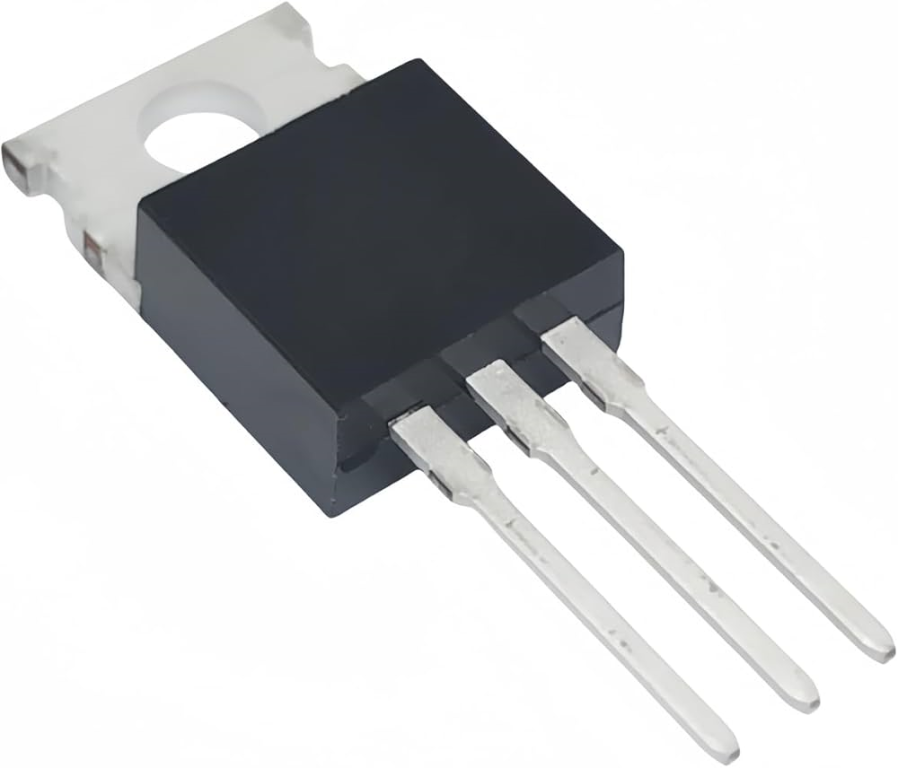

Package: TO220AB
