Type Designator: BC128
Material of Transistor: Si
Polarity: NPN
Absolute Maximum Ratings
Maximum Collector Power Dissipation (Pc): 0.1 W
Maximum Collector-Base Voltage |Vcb|: 25 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 125 °C
Electrical Characteristics
Transition Frequency (ft): 20 MHz
Collector Capacitance (Cc): 40 pF
Forward Current Transfer Ratio (hFE), MIN: 150
Noise Figure, dB: -

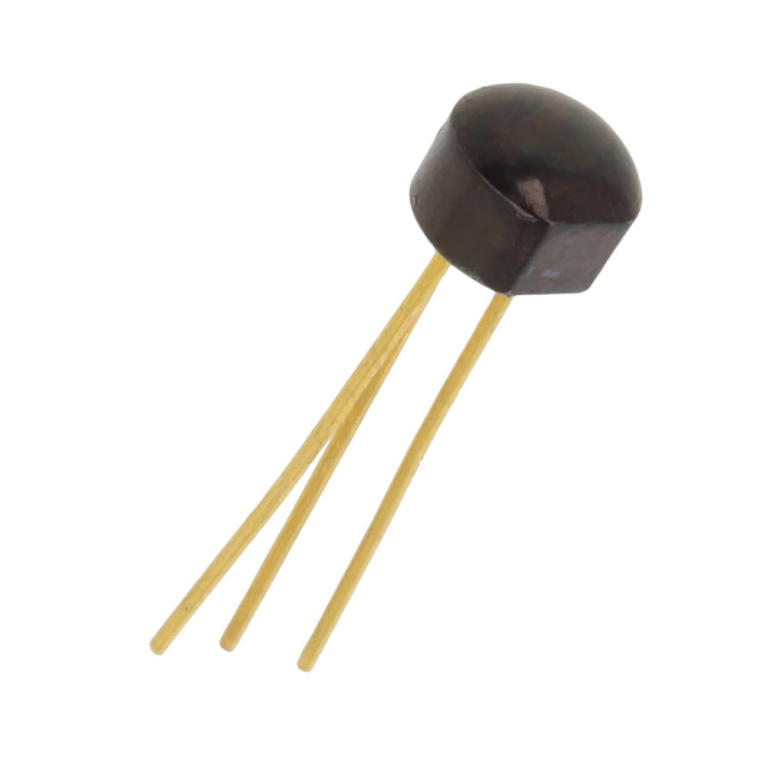

Package: U21
