BC135 TRANSISTOR BJT NPN TO106

Type Designator: BC135

Material of Transistor: Si

Polarity: NPN

Absolute Maximum Ratings
Maximum Collector Power Dissipation (Pc): 0.2 W

Maximum Collector-Base Voltage |Vcb|: 45 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 125 °C

Electrical Characteristics
Transition Frequency (ft): 200 MHz

Collector Capacitance (Cc): 4 pF

Forward Current Transfer Ratio (hFE), MIN: 50

Noise Figure, dB: -

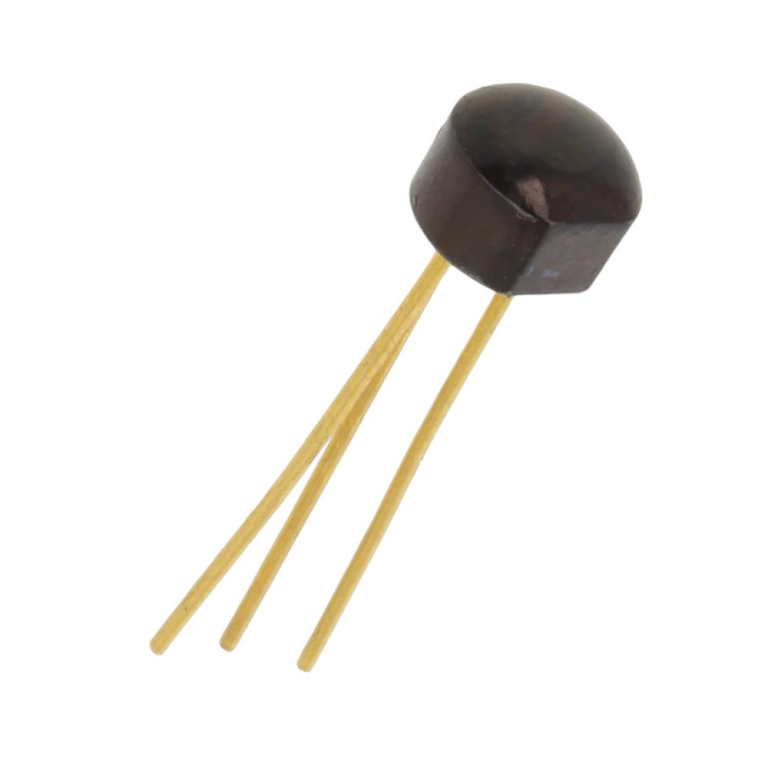

Package: TO106
